Pinout - X11 DC output
12-pin connector, Gray, no coding key. Odd pins on the upper row, even pins on the lower row, as numbered in the Siemens S7-1200 G2 system manual (Section A.5.7). 12 of 12 positions are wired.
| Pin | Signal | Wire color |
|---|---|---|
| 1 | 2M | white/blue |
| 2 | 2L+ | blue |
| 3 | DQ a.0 | blue |
| 4 | DQ a.5 | blue |
| 5 | DQ a.1 | blue |
| 6 | DQ a.6 | blue |
| 7 | DQ a.2 | blue |
| 8 | DQ a.7 | blue |
| 9 | DQ a.3 | blue |
| 10 | DQ b.0 | blue |
| 11 | DQ a.4 | blue |
| 12 | DQ b.1 | blue |
Wire colors per NFPA 79 / UL 508A: black AC line, white AC neutral, green/yellow ground, blue DC, white/blue DC common, red relay contacts (assumed AC-switched - tell us if they switch DC).
Part number system
TPC-6ES7214-1AH50-0XB0-X11-1M-20AWG
- TPC - Think-PLC pre-fabricated connector harness
- 6ES7214-1AH50-0XB0 - Siemens order number of the CPU 1214C DC/DC/DC
- X11 - DC output
- 1M / 2M / 3M - lead length in meters
- 18AWG / 20AWG - conductor size
What is in the bag
- G2 push-in connector, 12 positions, gray
- 12 x UL 1015 MTW conductors, chosen length and gauge
- Insulated ferrules both ends
- Printed signal-name sleeves both ends
- Spiral-wrapped bundle, 100% continuity tested
- Bag label with the full part number
Siemens wiring diagram
%20(1%20m%20-%2018%20AWG)?unique=110b78b)
%20(1%20m%20-%2018%20AWG)?unique=110b78b)

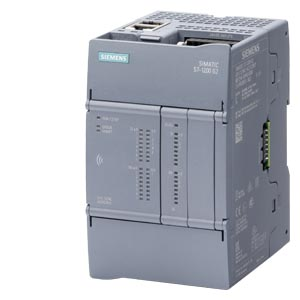

S7-1200 G2 Wiring Harness - CPU 1214C DC/DC/DC - X11 DC output (12-pin)
Plug in, land the ferrules, done. This harness fits the X11 terminal of the CPU 1214C DC/DC/DC and no other: the G2 connector matches the Siemens connector color and coding key. Every populated position carries a UL 1015 MTW conductor with an insulated ferrule and a printed signal-name sleeve at both ends.
Part number: TPC-6ES7214-1AH50-0XB0-X11-length-gauge. Built to order in Winston-Salem, ships in 3-5 business days. Configure a whole rack at once with the S7-1200 G2 Harness Configurator.
